Aluminum components for motor & transmission systems.
Motor and transmission assemblies may use aluminum components with defined mounting and assembly features. The casting design and secondary machining requirements should be considered together.
APPLICATION CONTEXTMotor & transmission
- Motor assemblies
- Power transmission
Part types
to discuss.
Illustrative component types, subject to drawing and manufacturing review.
- Motor end covers
- Bearing supports
- Mounting components
- Transmission-related castings
Have a component to discuss?
Start with your drawing, application, and the requirements that matter.
Pump housings

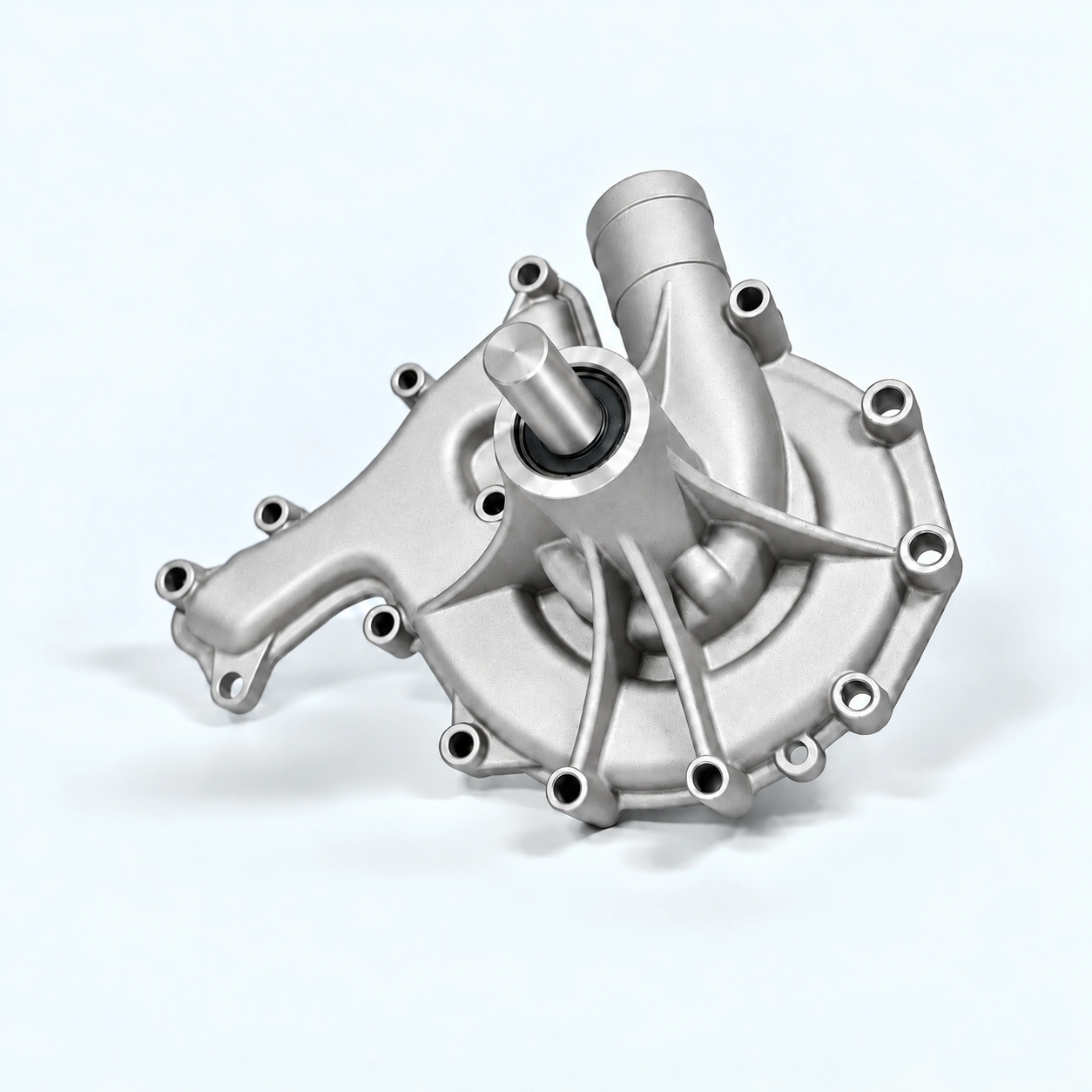

Front and rear views of a pump housing, showing the central assembly, mounting holes, and reinforcing ribs.
Planning a similar component?
For a similar pump housing, identify the bearing seats, shaft interfaces, sealing surfaces, and inspection requirements on your drawing.
Focus on the
features that matter.
Use the component drawing to define the manufacturing discussion.
- 01Assembly interfaces
- Share the component drawing and the mating features used in the wider assembly.
- 02Machining requirements
- Identify bores, mounting surfaces, and other features with drawing-defined requirements.
- 03Project requirements
- Include material, expected quantities, finish, and any inspection requirements specific to the application.
Describe the component you need.
Use your drawing and application requirements to prepare the project brief.
